IDS-GPR ANTENNA 600 MHz Vertical Survey (TR600V)

Product Details

RADAR CONTROL UNIT

IDS menyediakan peralatan yang terkonfigurasi terhadap permintaan dari pengguna. Jenis radar RIS-K2 Radar Control Unit (DAD – 1CH, DAD – 2CH/MCH or DAD – 4CH/MCH) merupakan suatu terobosan baru dari produk yang ditawarkan dengan perkembangan teknologi radar yang semakin maju. Control Unit ini dapat disambungkan ke antenna IDS berbagai model untuk melihat situasi dangkal hingga dalam di bawah permukaan tanah dengan dilengkapi reolusi tinggi hingga rendah. Pengumpulan data dapat ditunjukkan secara cepat menggunakan software tertentu untuk lebih mencakup peforma yang maksimum. Karakter sistem utamanya adalah mudah dalam penggunaan, dapat di-upgrade, compatible dengan GPS, ukuran kompak, ringan, dan remote assistance.

System

Compatible with all IDS TR Single Antenna

Pulse Repetition Frequency        : 400 KHz

Scan Rate                                            : Up to 850 Scans/Sec

Range                                                   : Up to 9999 nsec.

Number of samples per scan      : 128-8192

Sample size                                        : 16 bit

Resolution                                          : better than 5psec

Stacking                                              : up to 32768 scans, automatic or user selectable

Ports                                                     : ANTENNA 1, WHEEL, LAN, BATTERY

Maximum number of connectable antennas : 1

Maximum number channel         : 1 channel

Data collection                                  : Survey wheel driven or continuous motion profiling

CE compliant

DAD Mechanical and Operational

Dimension          : 17 cm x 22 cm x 5.5 cm

Weight                 : 1.2 Kg

Power Supply    : 12V ± 10%

Water and dust proof (IP 65)

Maximum power consumption (data collection) : 8 W

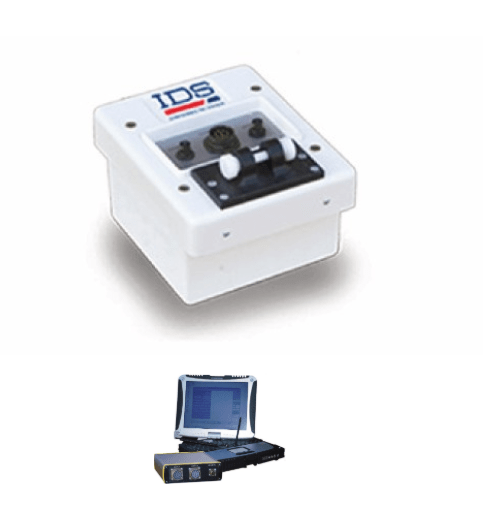

RADAR ANTENNA

Antenna

Type                      : Shielded Dipole

Frequency          : 600 MHz

Supplied with anchor plate for Antenna drag kit

Relative Humidity

<90% (non condensing)

Rain Proof (IP 65 in request)

Dimension

20 cm x 26 xm x 20 xm

Weight                 : 3 Kg

RADAR ACCESSORIES

Survey Wheel Kit (WHE50)

Wheel with 17 cm of diameter

Mechanical support for antenna side

Connection cable

Dimension          : 11 cm x 6 cm x 3 cm

Weight                 : 0.9 Kg

Relative humidity : <90% (non-condesing)

Rain Proof IP 65

HIP Chain Encoder (HCE)

For unshielded antennas

Metric walktax distance measurer m/dm

Feet walktax distance measurer feet/inch

Real cotton thread reels, 10-pack

Dimension          : 15 cm x 8 cm x 9 cm

Weight                 : 0.5 Kg

Relative humidity : <90% (non-condensing)

Shipping Box (SHI-BOX)

It contains No.1 DAD, No.1 Antenna, various accessories

Dimensions        : 80 cm x 50 cm x 30 cm

Weight                 : 80 cm x 50 cm x 30 cm

IP 65

Back Pack Kit for Acquisition (BP)

Kit for DAD control unit

Dimension          : 60 cm x 35 cm x 30 cm

Weight                 : 0.35 Kg

Metallic support for laptop

Safety belt
